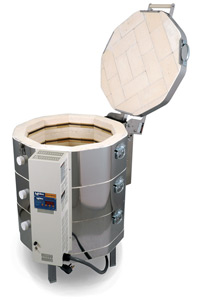

L&L School-Master Model SM23T Electric Kiln [SHIPS MFG]
Axner Number: xx
Weight: 325 lbs., 0.00000 oz.
|
List Price: $2,675.00
Axner Price: $2,007.00
You Save: $668.00 (25 %)
|
|
|
|
| |
 |
|
 |
|
Product Options |
| |
* denotes required field
Voltage*
Kiln & Fume Vent*
Furniture Kit*
|
|
Select the options you want
from the choices listed. Additional charges will reflect in the Axner Price listed above. When you're done customizing
this product, click the Add to Cart
button to place this item in your shopping cart. |
|
|
|
|
|
|
|
|
|
|
| Inside Width (inches) |
Inside Height (inches) |
Cu. Ft. |
Cone / Max Temp |
Amps |
Kilowatts |
Breaker Required |
23-3/8 |
27 |
7 |
6/2235°F |
240, single phase: 48
240, triple phase: 27.7
208, single phase: 48
208, triple phase: 30.5
|
240, single phase: 11.5
240, triple phase: 11.5
208, single phase: 8.8
208, triple phase: 11
|
240, single phase: 60
240, triple phase: 40
208, single phase: 60
208, triple phase: 40
|
| Ext. Dimensions (W x H x D) |
Ship Wt. Lbs. |
Furniture Kit |
Add'l Wt. w/Kit Lbs. |
31" x 41" x 42" |
325 |
2 21" full shelves, 4 21" half shelves, 6 ea - 1/2, 1, 2, 4, 6, 8 inch square posts, insulated gloves, 5 lbs. of cone 10 kiln wash. |
95 |
The School-Master K-12 School electric kilns are designed for K-12 Schools - with a five year limited warranty and L&L's One-Touch™ Control
Easy to buy, easy to fire and easy to keep. They combine the time-proven industrial technology of L&L kilns with a carefully thought out sense of simplicity. The only options you need to think about are the Vent-Sure downdraft vent and the Furniture/Accessory kit. The Proprietary One-Touch™ Intuitive Kiln Control is designed for busy school teachers - One touch and you are ready to fire the bisque and glaze programs typically used in schools. It is also easy to adjust individual parameters such as cone, delay, hold, heat-up and cool-down rates. You can even create four custom ramp/hold programs.
| L&L School-Master SM23T Kiln Features: |
- Five-Year Limited Warranty
- Single zone control with graded elements
- Type K 8 gauge thermocouple with protection tube
- Full support 14 gauge aluminized steel stand
- Easy-Lift, Easy Load stainless steel spring hinge system
- Three solid peephole plugs, full 1" view (no tapering)
- Hard ceramic element holders
- Proprietary reflective brick coating; protects bricks and keeps dusting down
- Mercury-free relays
- MET-us listing to UL499 standards pending
- Plugs on all USA models (6-50 on single phase; 15-50 on 3 phase)
- Kiln Brick Thickness: 2.5"
|
**Note: For large or heavy orders that weigh 150 lbs. we will advise you of the approximate freight cost. You will not be charged until we verify shipping costs with you.** |
|
|
|
